Global Communications is proud to have been appointed the New Zealand distributor for Durabook tablets and laptops. Durabook® , a core brand of Twinhead International Corp. founded in 1984, listed on Taiwan Stock Exchange, is one of the key suppliers in the rugged mobile computing industry. Durabook offers a wide range of product lines that meet  diverse demands of customers from different industries, including government, military, utilities, field service, transportation, healthcare and insurance.

We are actively seeking reseller for the New Zealand and Australian market.

r11-0006_1

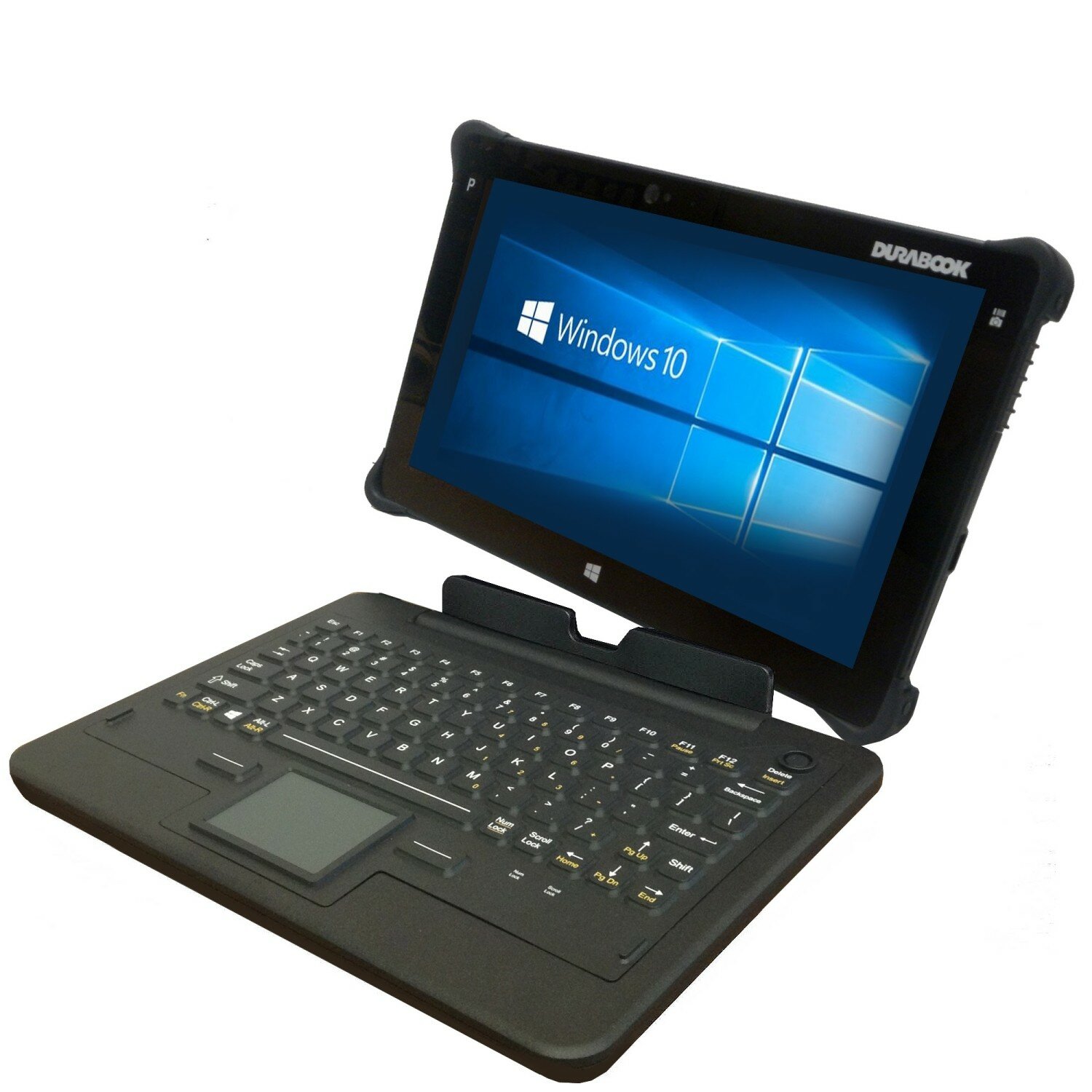

Durabook R11

The DURABOOK R11 rugged tablet PC features an 11.6” TFT LCD capacitive touch display and a powerful 5th generation Intel Broadwell Core processor for workers in the utility, public safety and government markets. It is the lightest 11.6” rugged tablet PC in its class at only 2.73 pounds, while remaining tough with Military Standard 810G and IP65 certifications for drop, shock, dust and water resistance. Its wide operating temperature range of -4 °F ~ 131 °F means it can stand up to the daily wear and tear encountered in office or field settings. The R11 functions for up to 7 hours and can be customized with a wide array of options, including Microsoft Windows 7 Professional or Windows 10 software. Security features include computrace support BIOS, administrator password, TPM 1.2, Kensington lock, and boot password protection. Additional features include a built-in G-sensor, gyroscope sensors, and a light-ambient light sensor; Intel high- definition audio; SSD 64GB/128GB/256GB storage; a Micro SD card slot that supports SDHC and SDXC; and a front-side, full HD camera as well as an integrated rear-facing 5MP camera. Wireless communications are provided by Intel Centrino Wireless AC 7260 NGW 802.11 a/b/g/n/ac and Bluetooth 4.0 Class 1.

Rugged Revolution – Thin, Light and Strong

R11 is rugged mobility at its finest. Its ultra-thin and lightweight exterior measures only 20mm in height and 1.2 kg in weight.

FeaturesSpecificationsOther Information
  • IP65
  • 4 feets drop and MIL-STD 810G
  • 11.6” Widescreen Display with Sunlight Readable Solution
  • Sunlight Readable Display (Brightness: 730 nits)
  • Capacitive Multi-Touch Screen
  • Optional Digitizer
  • 1D / 2D Barcode Scanner
  • 5MP Auto Focus Camera with LED Flash Light

System Specifications

Processor Intel® i5-5200U 2.2GHz or i7-5500U 2.4GHz
System Memory DDR3L 1600, one 204-pin DDR3L SODIMM socket for 4GB, Max. 8GB
Storage SSD 64GB/128GB/256GB
Display 11.6” HD (1366×768 resolution) TFT LCD with capacitive multi-touch screen panel, LED backlighting
Optional Sunlight Readable
Exclusive touch technology work with latex glove and even wet environment
Optional Digitizer
Webcam Full HD Camera on top of the front panel
Integrated rear facing 5MP camera
Audio Intel high definition audio (one speaker, one microphone)
Interface Two USB 3.0 connectors
One 3.5mm Audio combo jack for Mic / headset
Docking connector
Mirco SD Reader
Sim Card Reader
DC-In Jack
Optional RF Pass-Thru connector
Optional integrated Barcode Scanner, support 1D/2D barcode reading
Optional Expansion Module: RFID reader support ISO 15693, 14443A/B stand, NFC ISO 18092
Optional Expansion Module: Fully Enclosed Smart Card Reader
Optional Expansion Module: Contacless Smart Card Reader
Optional Expansion Module: Magnetic Stripe Reader & Smart Card Reader Combo Module
Built in G-sensor, Gyroscope sensors
Optional E-compass for Windows 8.1
Built in light ambient light sensor
Wireless & Communications Intel Centrino Wireless AC7260 802.11a/b/g/n/ac and Bluetooth 4.0
Optional integrated M2 module GPS/WWAN (Gobi 5000 LTE Module)
Power Supply AC Power input:100V-240V, 50Hz-60Hz, output:19V,3.42A;65W
Lithium polymer battery pack
Security Computrace support BIOS, Administrator password, TPM 1.2, Kensington Lock, Boot password
Certification US: FCC, DOC+, CUS, FCC ID
EU: CE, CB
CAN: CUS, IC
Software Microsoft Windows® 7 Professional or Windows 10
Dimensions & Weight 11.4’’(W) x 7.48 ’’(D) x 0.78 ’’(H) / 290mm(W) x 190mm(D) x 20mm(H)
2.73 lbs / 1.23 kg
Green Design RoHS/REACH compliant, EPEAT compliant

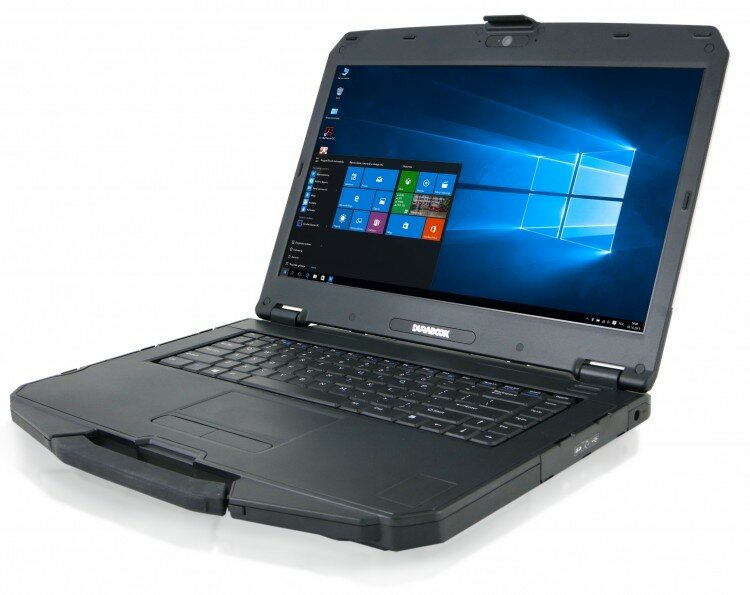

Durabook S15AB(NEW)

The S15AB rugged notebook combines the computing power and performance you need, with the rugged features you expect from a Durabook to protect the system and ensure reliability in the field. The unit features a generous 15.6” LCD display with full HD resolution (1920×1080); Intel’s latest generation CPU; a Broadwell U series CPU platform; up to 16GB of memory; and advanced security features. With its magnesium alloy design, and military standards of drop, shock and spill resistance, the DURABOOK S15AB is designed to protect the system in the harshest environments. The DURABOOK S15AB is ideal for applications such as those found in the automotive industry, government and field applications.

FeaturesSpecificationsOther Information
Drop Resistant: MIL-STD-810G, Method 516.6, Procedure IV.
2.5 feet high with 26 drops to 2” plywood over concrete with unit off.
4 feet high with 6 face drops to 2” plywood over concrete with unit off. Up to 5 units to pass.
Anti-shock mounting design protects LCD screen and hard disk drive from damage and data loss. Flexible HDD cable design absorbs shock from drops
Shock Resistant: MIL-STD-810G, Method 514.6, Procedure I, Category 24, Fig. 514.6E-1 (non-operating)ASTM 4169, Truck Transport, 11.5.2 Random test, Assurance Level (Operating)
Spill Resistance: 100c.c. water drop on all C cover area in 2-5 seconds with system operational, with no effect on system operation or stability. C face is Spill proof. Includes Keyboard, buttons and Indicators.

Security Feature:

Security: BIOS administrator password / Boot password
Computrace BIOS ready
Smart Card Reader
Kensington Lock
TPM 2.0

System Specifications

Processor Intel 5th Generation i-core series
System Memory Two DDR3L SODIMM sockets, up to 16GB
Storage 2.5″ SATA HDD or SSD
ODD Super Multi DVD Drive
Display 15.6” FHD (1920×1080)
Graphics Intel HD Graphic 5500
Audio High Definition Audio
Two speakers
Analog MIC
Webcam 2.0 Mega Pixel
I/O Devices Touch Pad with 2 Buttons Support Multi-touch Feature
One SDXC Card Reader
One Smart Card Reader
I/O Ports Two USB 3.0 connectors
Two USB 2.0 connectors
One Head Phone / MIC combo jack
One DC-In jack
One RJ-45 jack for internal gigabit Ethernet
One 19 pin HDMI port, resolution up to 4K
One 15 pin D-sub VGA port
One 9 pin D-sub serial port
Keyboard 88 US Keys with Windows Key
Optional backlight keyboard (US)
Wireless/Communications Intel Dual Band Wireless AC7265 with Buletooth4.0
Security Kensington Lock / Administrator password / Boot password / Computrace support / TPM 2.0
AC Adapters AC power input:100V-240V,50Hz-60Hz; output: 19V, 65W
Battery battery life 8.5 hours
Dimensions & Weight 14.7”(W) x 10.7”(D) x 1.1”(H) / 375mm(W) x 273mm(D) x 29.5mm(H)
5.73lbs / 2.6kg
OS Windows® 7 Pro / Windows® 8.1 Pro / Windows® 10
Certification FCC, DOC, CUS, CE, CB
Green Tech RoHS / REACH / Energy Star 6.1 compliant
ErP, WEEE



durabook-s15ab
001_1500x1500

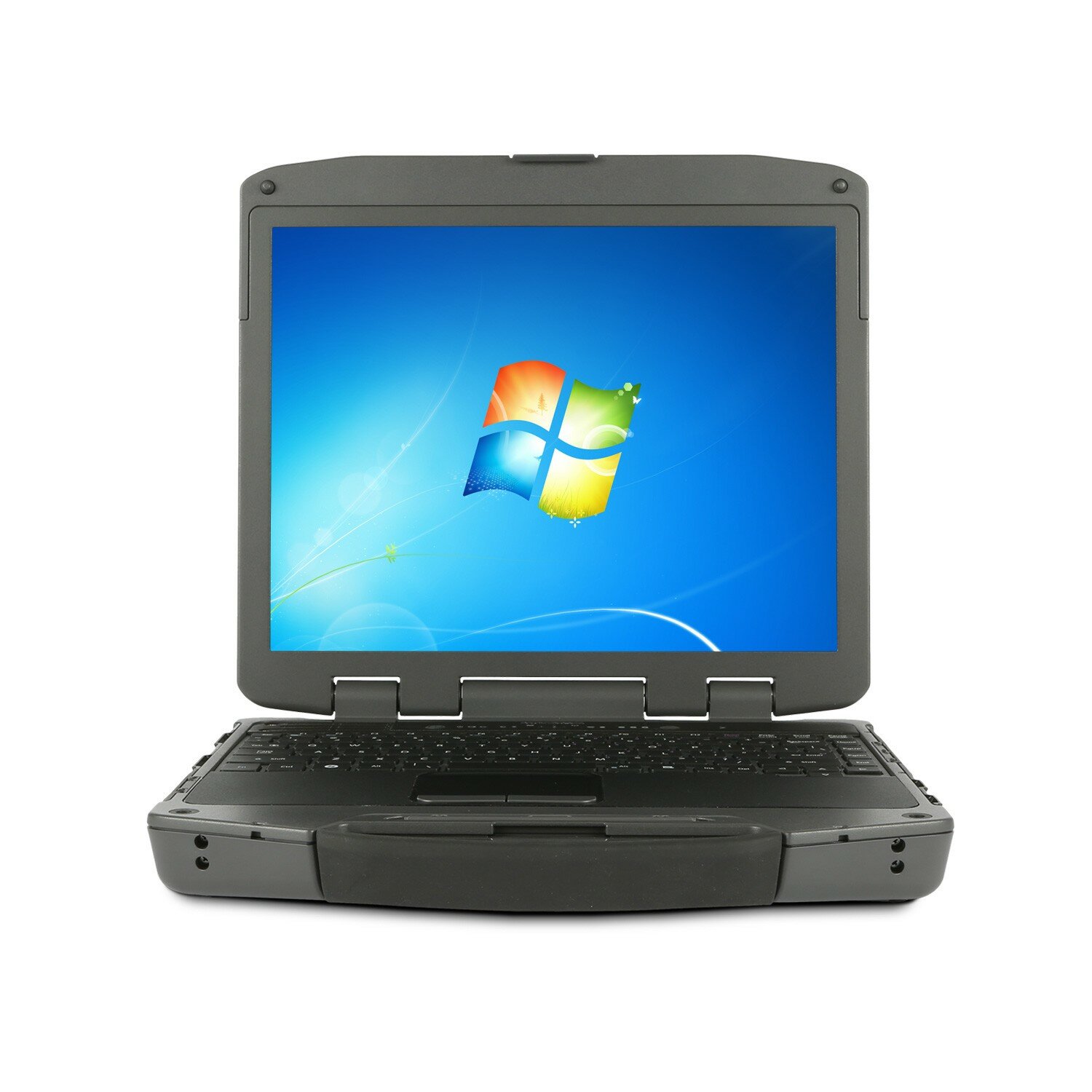

DURABOOK – R8300

The-All-New DURABOOK R8300 R2 designed to withstand extremely harsh environments, the R8300 notebook meets a host of rugged certifications such as Military Standard 810G, 461F, IP65, and more. This fully rugged powerhouse is equipped with Intel’s 6th Skylake CPU, the latest genration Intel Chipset, and includes the Windows 10 operating system. The R8300 boasts a 13.3” 1050 nits TFT LCD display with sunlight readable feature for workers toiling in bright, mid-day sun. With its quick-release HDD-storage capability, users can inter-swap HDDs simply by turning a couple knobs. The R8300 comes with a Super Multi ODD or optional second battery with hot swap support for full day operation. Other features include security protection such as Absolute Computrace, TPM  and a Kesington lock, and various connectivity support such as Wireless LAN and Bluetooth 4.2, SIM card slot, GPS module, Wi-Fi, Gobi 5000and more. It is designed for the military, public safety and utility markets.

FeaturesSpecificationsOther Information

Tough Features:

Drop Resistant: MIL-STD-810G, Method 516.6, Procedure IV, 4′ height with 26 drops to 2” plywood over concrete when the unit is operating with the storage of SSD
Vibration Resistant: MIL-STD-810G, Method 514.6, Procedure I, Category 24, Fig. 514.6E-1
ASTM 4169, Truck Transport, 11.5.2 Random test, Assurance Level 2
Water/ Sand/ Dust resist: IP65
Salt fog: Meet MIL-STD-810G 509.5 5% Salt 48Hr Exposure 48Hr Drying Period when the unit is off
MIL-STD-461F: Meet MIL-STD-461F CE102, RE102, figure RE102-3 limit for aircraft & space system applications, Level 2 (Fixed Wing Internal, 25meters nose to tail)
Hazardous Environment Meet ANSI C1D2 12.12.01
Temperature Operating Temperature -22~ 140°F (Test Method: MIL-810G 501.5 Procedure II)
Storage Environment Temperature -60~160°F (Test Method: MIL-810G 501.5/502.5 Procedure I, Climatic type: Hot Dry-Severe cold)
Humidity 5% ~ 95% (Test Method: MIL-STD 810G 507.5 Procedure II)
Altitude Operating: 15,000ft (MIL-STD-810G 500.5 Procedure II)
Non Operating: 40,000ft (MIL-STD-810G 500.5 Procedure I)

System Specifications

Processor Intel® Skylake i7-6600U 4MB Cache 2.6GHz with 3.1GHz Turbo with vPro
Intel® Skylake i7-6500U 4MB Cache 2.5GHz with 3.1GHz Turbo
Intel® Skylake i5-6300U 3MB Cache 2.4GHz with 3.0GHz Turbo with vPro
Intel® Skylake i5-6200U 3MB Cache 2.3GHz with 3.0GHz Turbo
System Memory Two 204-pin DDR4 SODIMM sockets each for 4GB, 8GB, 16GB, 32GB Max.
Storage SATA HDD- equipped with quick-release feature
Media 5.25” Super multi DVD/RW (Media compartment can be used as optional 2 battery)
Display 13.3” XGA (1024×768) 1050 nits TFT LCD with Touch Sunlight Readable Panel
Graphics Integrated Intel® HD 520
Audio HD Audio
Analog Mic
Two speaker
I/O Devices Expansion Card : Optional 32bit PC card type II slot (Factory Option)
Express Card/Smart Card reader: Optional Card 54 slot x1 or Optional Smart card slot that support ISO 7816
Touch Pad : Hidden Touch Pad – PS/2 mouse interface / support Right/Left buttons
I/O Ports 2 x USB 2.0 connectors
1 x USB 3.0 connectors
1 x Head Phone out phone jack
1 x DC-In jack
1 x RS-232 D-sub connector
1 x 84 pin Docking connector
Tri-passthrough connectors for Ext. antenna of WLAN, WWAN and GPS
1 x USB 3.0 connector
1 x Mic-in phone jack for external Microphone
2 x RJ-45 jack for internal 10/100/1000Mbps Ethernet
1 x 15 pin VGA port for ext. monitor/ projector
Keyboard Backlight keyboard (US) with 4 level of brightness adjustment
Wireless/Communications Intel® Dual Band WirelessBluetooth combo module
Gobi 5000 LTE(optional)

  • Built-in WWAN antenna & SIM card slot
  • Optional GPS module with Built in GPS antenna
Power System AC/DC adapter : Input: AC 100~240V 50/60Hz, universal , Output: 19V, 90W
Compliant with Energy Star
Battery Li-Ion 9 cells (Approx. 11hrs*)
Optional 2nd cell battery
Security Administrator password/ Boot password, Computrace® Ready, TPM 2.0, Kensington Lock, Fingerprint Scanner, Smart Card Reader
Operating System Windows 10 Professional
Dimensions & Weight 12’’(W) x 10.57’’(D) x 2.28~2.63’’(H) / 305mm(W) x 267mm(D) x 58~67mm(H)
8 lbs / 3.63 Kg (with ODD & 9 cells Battery)
Green Design RoHS compliant, REACH, Energy Star, EPEAT Silver
Certification FCC, CE,CUS,CB
