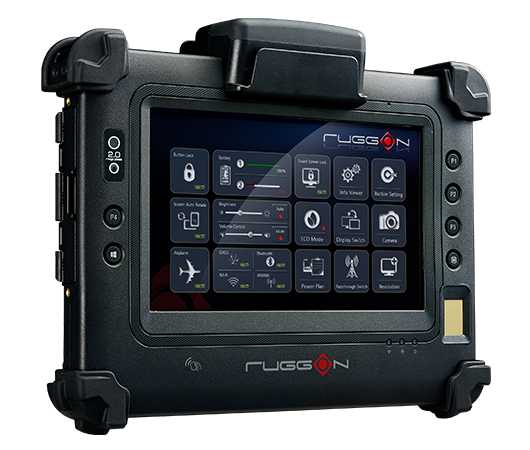

PM-311B 7″ Fully Rugged Windows Tablet

With high-performance fingerprint reader, MRZ reader and multiple security functions, PM-311B provides a high level of security for public safety needs.

Incorporated with 850 nits class-leading sunlight readable optical bonding technology to ensure optimized readability under direct sunlight for mobile workers.

PM-311B, the world’s first ever tablet that can read up to 3 lines of machine-readable zone (MRZ) data – enabling it to capture, identify, and process passport, visa and ID card information. Equipped with a 508-dpi capacitive and high-performance fingerprint reader, PM-311B can collect more detailed and accurate fingerprint characteristics and match them to database.

Beside the encrypted SSD with FIPS 140-2 certification, we also offer a customized one button push function to securely erase SSD data during emergencies by leveraging Phoenix’s SecureWipe technology and implementing a number of global standard algorithms. PM-311B is also equipped with Janus USB Ignition Key, which is the only security solution in the market that combines BIOS, cloud services and physical USB Key all working together to authenticate users.

FeaturesModel & OptionsOther information
  • –7” capacitive multi-touch with Gorilla glass
  • –850 nits, optical bonding with AR/AF sunlight readable solution
  • –IP65, MIL-STD-810G, 5 feet drop resistance
  • –NFC, GNSS, WLAN, WWAN, Bluetooth
  • –Hot swappable battery design
  • –Optional fingerprint and MRZ reader
  • –Optional Janus USB Ignition Key, Phoenix SecureWipe





PM-311B4HBXX-5EXWXS6MXX Intel N2930 1.83GHz, 4GB RAM, 128G SSD,
7″ 1024×60, 850 nits high brightness capacitive touch,
Windows 10 IoT Enterprise (64bit, Multi-Language),
BT4.0, Wi-Fi a/b/g/n/ac, 2MP/8MP camera, GNSS, NFC
power cord, Accessories,



Options

Fingerprint reader
Phison 256GB SSD
128GB SSD with FIPA 140-2 Certificate
4G LTE for EU (EM7305 & LTE main antenna)
4G LTE for US (EM7355 & LTE main antenna)
Windows Embedded 8.1 Industry Pro Tablet (64-bit, Multi-Language)
SN202-MB01: snap-on MSR and 2D barcode reader
SN202-MM01: snap-on MRZ+MSR
EB02: External 2nd battery with hook



Warranty: 3 years

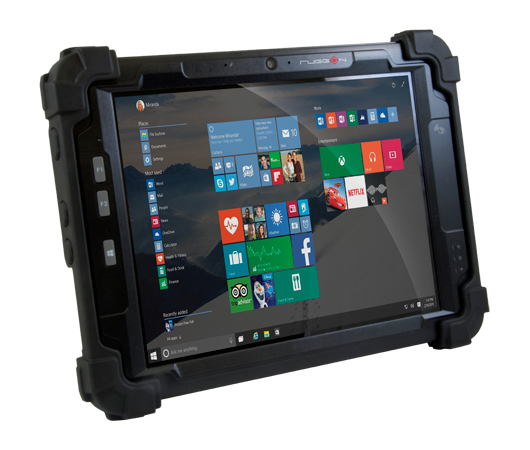

PM-522 10.4″ Fully Rugged Windows Tablet

Considering the requirements of field work, PM-522 features best-in-class robust structure, the latest RF technology and rich data-capture functions.

The 4:3 screen of PM-522 is equipped to the highest specification on the market and offers large viewing area. It is easily compatible with existing software.

FeaturesModel & OptionsOther information
  • IP65, MIL-STD-810G, 6 feet drop resistance
  • 10-point capacitive multi-touch, sunlight readable
  • 802.11 ac, Bluetooth, optional 3.5G or 4G LTE
  • Hot swappable battery design
  • NFC and GNSS built-in
  • A number of snap-on modules for data capture
  • Compact vehicle dock with wide range voltage power





PM-522B4NBXX-2EXW8IMLXX 10.4″ 1024×768, 350 nits Normal brightness capacitive touch
Intel E3827 1.75GHz (Bay Trail)
Windows Embedded 8.1 Industry 64-bit pre-installed with COA label (Tablet license)
4GB RAM
64G SSD
BT4.0, Wi-Fi a/b/g/n/ac, 2MP/5MP camera, GNSS, NFC
power cord, In-box accessories
PM-522B4HBXX-2EXW8IMLXX 10.4″ 1024×768, 700 nits Normal brightness capacitive touch
Intel E3827 1.75GHz (Bay Trail)
Windows Embedded 8.1 Industry 64-bit pre-installed with COA label (Tablet license)
4GB RAM
64G SSD
BT4.0, Wi-Fi a/b/g/n/ac, 2MP/5MP camera, GNSS, NFC
power cord, In-box accessories
Warranty: 3 years
145344311373
PM-511_2

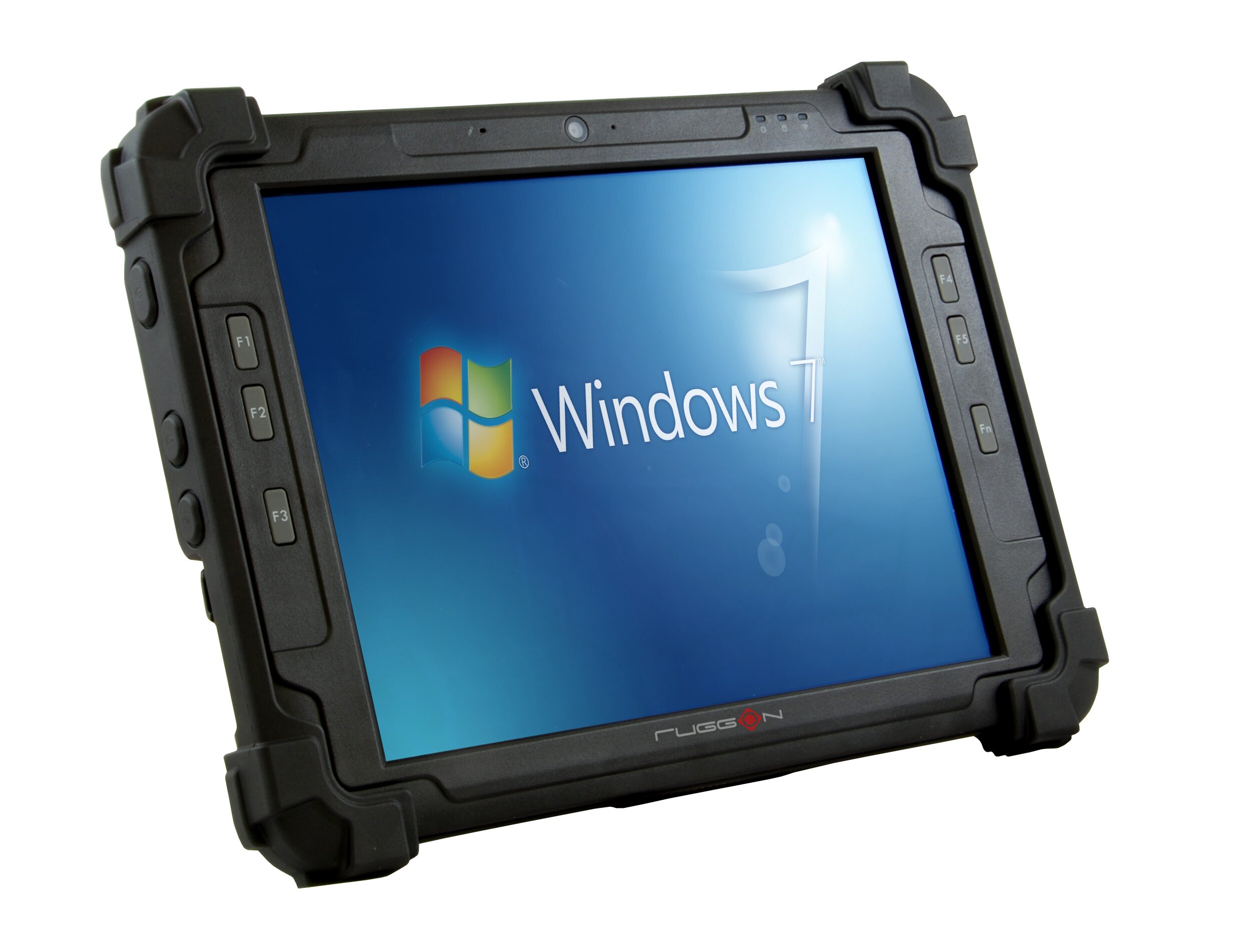

PM-511 10.4″ Fully Rugged Windows Tablet

PM-511 offers flexible expansion accessories and seamless communications to perform various tasks more efficiently and accurately.
Besides Barcode Scanner, MSR and GPS, PM-511 is equipped with three 2-in-1 snap-on modules including GPS+Barcode Scanning, GPS+NFC, GPS+CAC. By integrating two functions into one single snap-on module, PM-511 is expanded with more data acquisition options without limitation. It enhances workers productivity and streamlines business process.
FeaturesModel & OptionsOther information
  • IP65, MIL-STD-810G, 6 feet drop resistance
  • Sunlight readable function by request
  • Seamless communications, optional 3.5G
  • Up to 9 hours of battery life
  • 2MP and 5MP with auto focus, LED flash cameras
  • A number of 2-in-1 modules for data capture
  • Wide coverage accessories
  • Compact vehicle dock w/ wide range voltage power





PM-511A2NBXX-1EXWE7MLXX 10.4″ 1024×768, 350 nits Normal brightness resistive touch
Intel N2600 1.6GHz (Cedar Trail)
Windows Embedded Standard 7 32-bit pre-installed with COA label
2GB RAM
32G SSD
BT4.0, Wi-Fi a/b/g/n, 2MP/5MP camera
power cord, In-box accessories
Battery and Charger
EB01 External 2nd 4200mAh battery with hook
EB100 1-bay 2nd battery charger  (No AC-DC adapter and power cord)
VC01 Vehicle charger
Snap-On Module
GP03-2 GPS
MR01 Magnetic stripe reader (MSR)
BC01 2D barcode reader
SN201-GB01 GPS and 2D barcode reader
SN201-GN01 GPS and NFC
SN201-GC01 GPS and smart card reader
Docking Station
DT02M DeskTop Docking  (No AC-DC adapter and power cord)
VD200M Vehicle Mount Docking (with ACC and Cigarette power plug)
Mounting System
VB02 VESA bracket
VB03 VESA bracket
Others
CBG02 Carry bag
71-50720-06 AC-DC power adapter
22-30252-01 EU power cord
22-30254-01 US power cord
22-30253-01 UK power cord
22-30255-01 China/AU/NZ power cord
24-89PO5-00 PM-511 protection film
