PM-311B 7″ Fully Rugged Windows Tablet
- 7” capacitive multi-touch with Gorilla glass
- 850 nits, optical bonding with AR/AF sunlight readable solution
- IP65, MIL-STD-810G, 5 feet drop resistance
- NFC, GNSS, WLAN, WWAN, Bluetooth
- Hot swappable battery design
- Optional fingerprint and MRZ reader
- Optional Janus USB Ignition Key, Phoenix SecureWipe
Incorporated with 850 nits class-leading sunlight readable optical bonding technology to ensure optimized readability under direct sunlight for mobile workers.

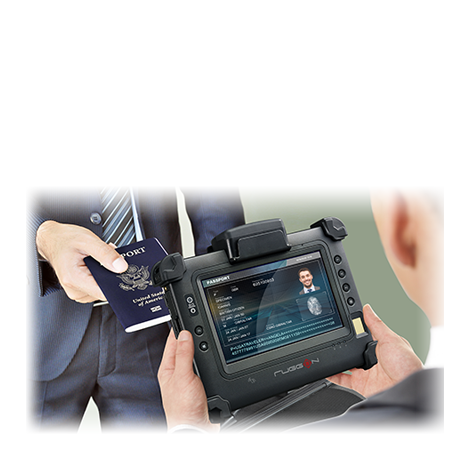

PM-311B, the world’s first ever tablet that can read up to 3 lines of machine-readable zone (MRZ) data – enabling it to capture, identify, and process passport, visa and ID card information. Equipped with a 508-dpi capacitive and high-performance fingerprint reader, PM-311B can collect more detailed and accurate fingerprint characteristics and match them to database.
Beside the encrypted SSD with FIPS 140-2 certification, we also offer a customized one button push function to securely erase SSD data during emergencies by leveraging Phoenix’s SecureWipe technology and implementing a number of global standard algorithms. PM-311B is also equipped with Janus USB Ignition Key, which is the only security solution in the market that combines BIOS, cloud services and physical USB Key all working together to authenticate users.
With all the connectivity options and data capturing capabilities you need in one compact form factor, PM-311B empowers you to do more.
| System | Intel® Celeron® N2930, 1.83GHz DDR3L 4GB RAM memory, optional 8GB 128GB/256GB, optional 128GB FIPS 140-2 Level II SSD |
| Operating System(option) | Windows 10 IoT Enterprise for Small Tablet Window Embedded 8.1 Industry Pro for Tablet |
| Display | 7-inch WSVGA (1024 x 600), multiple capacitive touch with Gorilla glass 850 nits, Optical Bonding with AR/AF solution |
| Communication | NFC Wi-Fi 802.11 a/b/g/n/ac GNSS (GPS, GLONASS, optional BeiDou) Bluetooth V4.0 EDR Optional 4G LTE |
| Camera | Front 2MP, rear 8MP AF with LED flash |
| I/O Interface | USB 3.0 type A x 2 RJ-45 (10/100/1000) x 1 RS-232 x 1 Audio jack x 1 Micro SD slot x 1 Micro SIM slot x 1 32-pin docking connector x 1 Speaker & microphone DC-in x 1 |

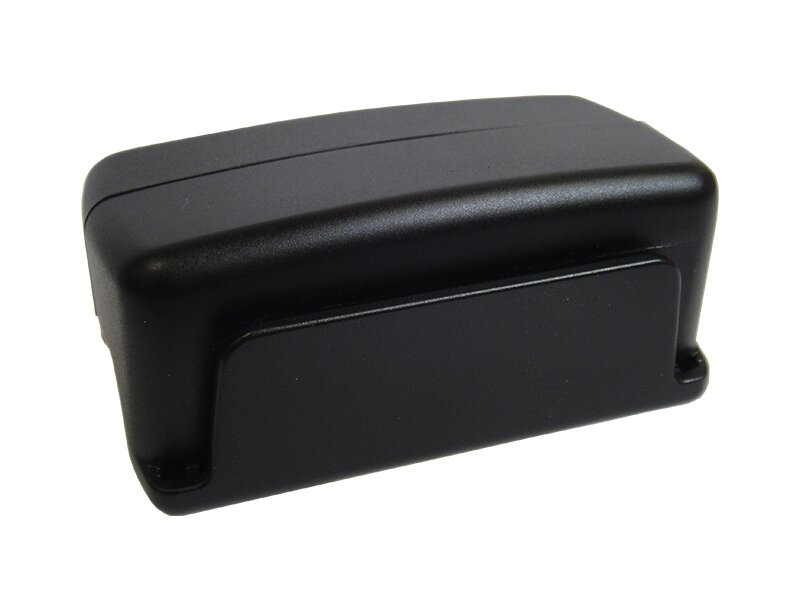

| Expansion | Optional MRZ reader MSR 2-in-1 module Optional 2D barcode reader MSR 2-in-1 module |
| Security | TPM 2.0 Optional fingerprint reader (capacitive type, 508 dpi) Optional Janus USB Ignition Key, Phoenix SecureWipe |
| Durability | MIL-STD-810G, 5 feet drop, IP65 Operating temp : -20℃ to 50℃ |

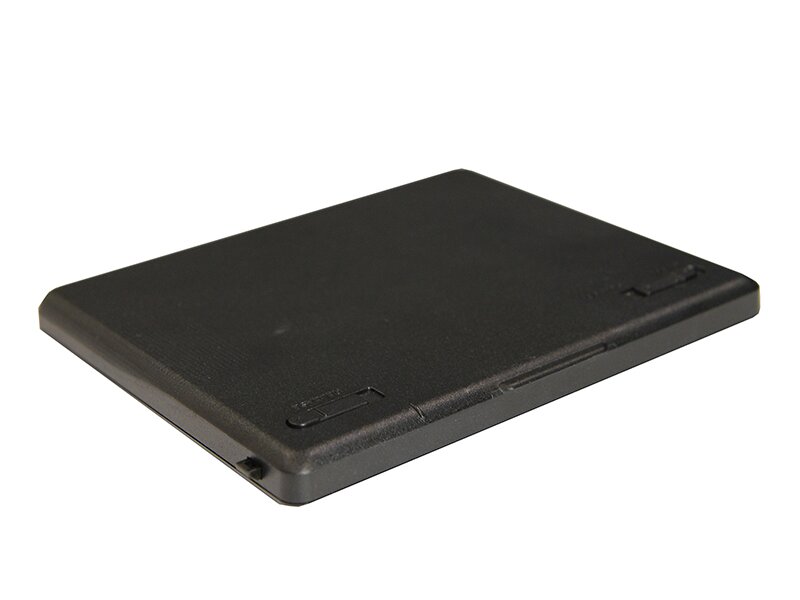

| Battery | Standard : 2900 mAh, 7.5V Extended (option) : 4200 mAh , 7.4V, hot swappable |
| In-Box Accessories | Stylus, hand strap, shoulder strap, handle, adapter |

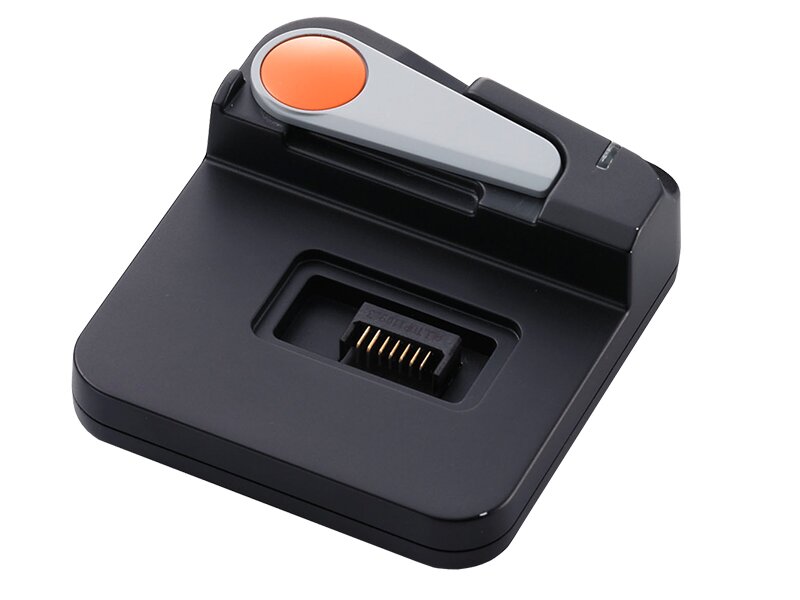

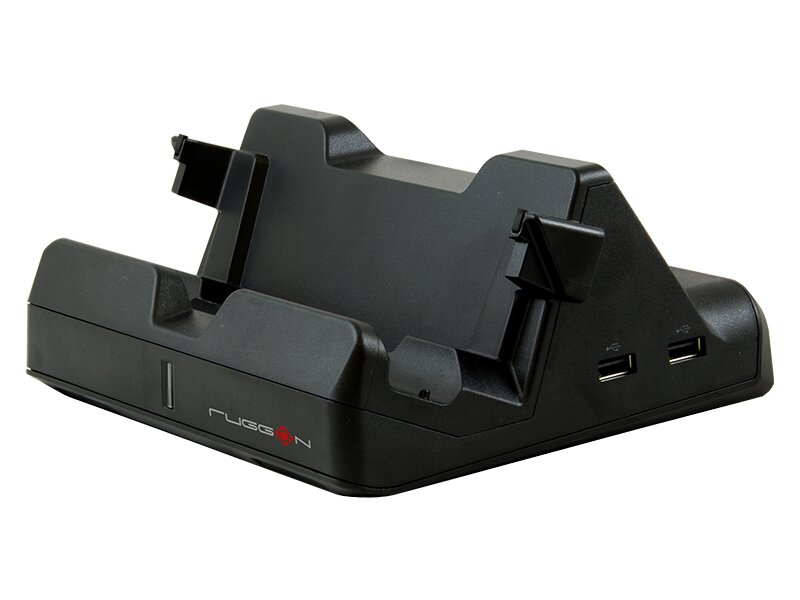

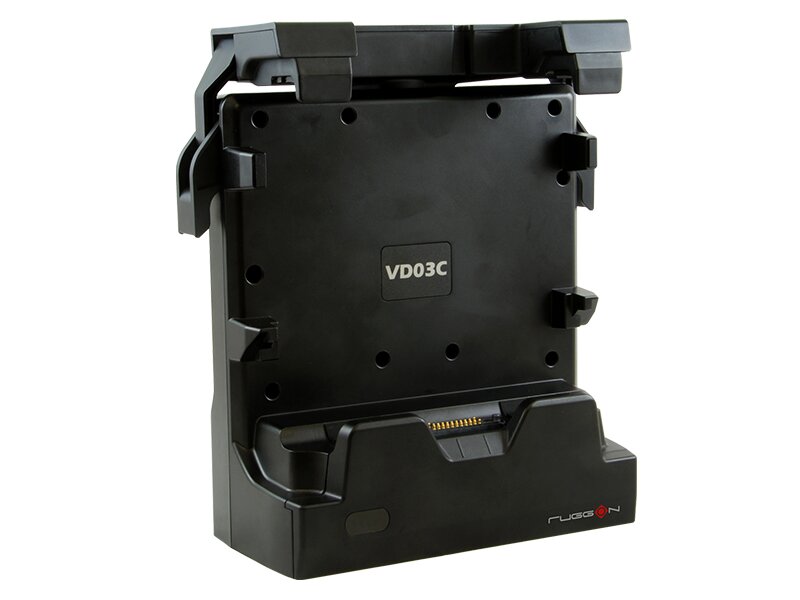

Vehicle Dock, Desktop Dock, MSR MRZ Reader, MSR Barcode Reader, Extended battery, Battery Charger
