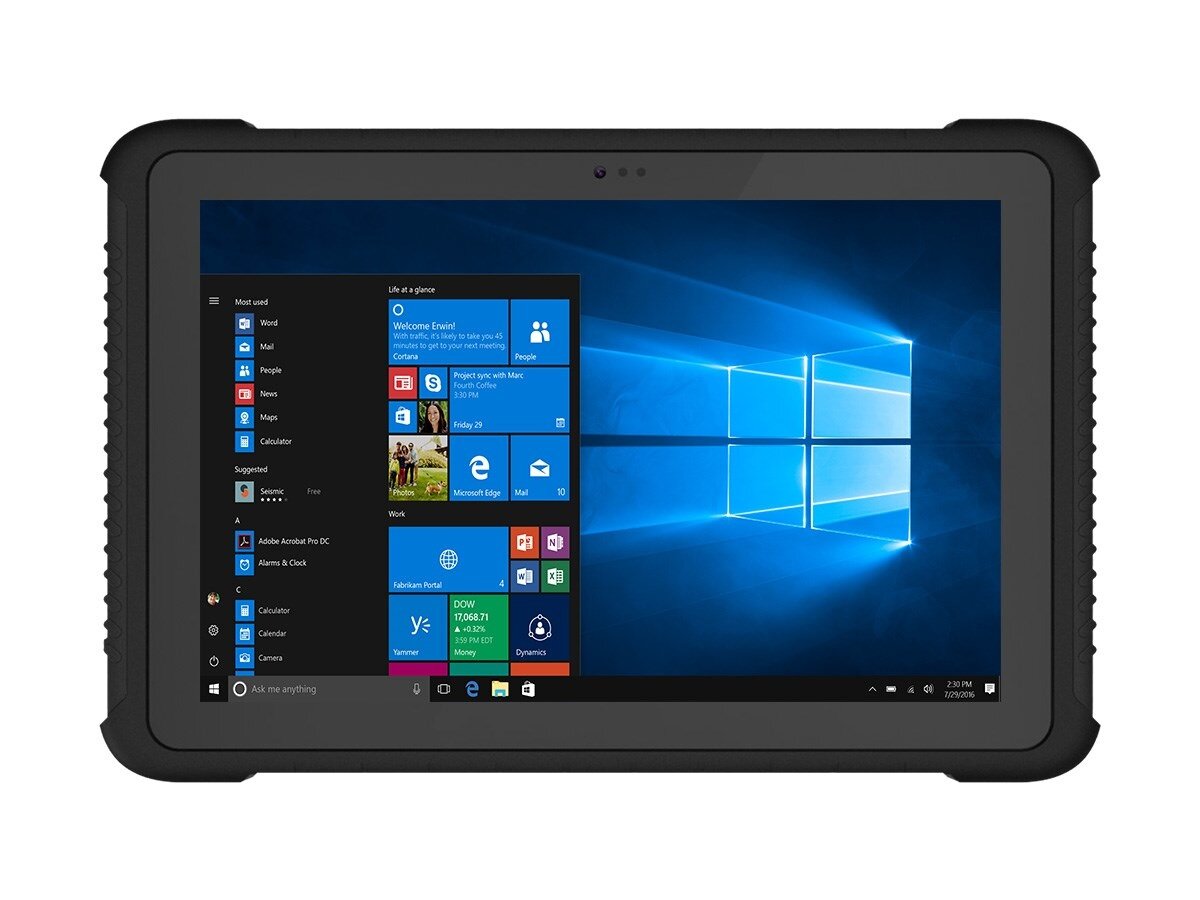

GlobComm ST16 10" Rugged Tablet

Production Description

This rugged tablet brings special features serial port and a capacitive multi-touch screen that supports glove touch, available on much more expensive tablets. Add options for Windows 10 or Android 5.1, 1D/2D barcode scanning this is the perfect outdoor business tool. Easy to carry with its carry handle. By far our best seller.

Features:

  • Lightweight fully-rugged 10.1 inch Windows or Android  tablet
  • 10.1-inch daylight readable screen with 10 points multi-touch display
  • All weather IP65 rated dust and water-resistant design
  • Glove-friendly screen
  • USB, serial (RS32), RJ45
  • User exchangeable (5000mAh Replaceable Battery) provides over 10 hours of continuous use
  • Wi-Fi, Bluetooth, dedicated GPS, and 4G option
  • Optional vehicle mount with 2xUSB, serial, LAN



Product Form Rugged Tablet
280*187*22mm
Device unit: 1210g
Unit with and standard accessories:1990g
Docking:290g,10000mAh battery:250g
Black(front and rear Panel: black)
LCD 10.1 inch 10:16
800 (RGB)*1280
400 cd/m2
TP 10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF
Camera Front:2.0MP with chargeing indicator light
Rear: 5.0MP
Speaker Embedded 8Ω/0.8W waterproof speaker x 1
Mic Sensitivity:-42db, output resistance:2.2kΩ
Battery Lithium-ion polymer battery , pluggable, dimension: 21.8*92.3*9.5mm
3.7V/10000mAh
8hrs(default 50% volumn,default200nit,play 1080P HD video)
CPU Intel cherry Trail Z8350
1.33Ghz-1.92GHz
GPU Intel HD Graphic(Gen7)
RAM 2GB/4GB
ROM 32GB/64GB/128GB
G_sensor Gravity acceleration sensor
WIFI WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI
Bluetooth BT4.1 (BLE) class1 transmission distance:10m
3G/4G 3G model: Bands B1,B3

4G LTE model: Bands B1,B2,B3,B4,B5,B7,B8,B28,B40

1D Barcode scanner Optional
2D Barcode Scanner Optional
TF slot Support TF x1 max:128G
USB Interface USB 2.0*1 (Host)for windows Android OTG x1
Earphone Jack ∮3.5mm standard earphone jack x1
DC Jack DC 5V 3A ∮3.5mm Power connector x1
HDMI HDMI 1.4a Type C x1
Extensive Slot 12pin Pogo Pin x1
DB9 PORT *1 (RS232) TTL electrical level
RJ45 PORT *1(10/100 self-adaption)
Air outlet Optional
OTG Cable USB OTG to MICRO USB cable length:45mm
USB Cable USB to micro 5P L=1.2M 4core aluminum foil shield cable
Power Adaptor AC100V ~ 240V、50Hz/60Hz output DC 5V/3A USA Standard CE approval
Operation System windows 10 Home Default language English Or Android 5.1

Optional Windows 10 Pro, IoT

Rugged IP65 – Mil STD 810G
Product Reliability 100cm composite wood floors, in operation status
‘-10 °C to 50 °C
’-30 °C to 70 °C
Humidity: 95% Non-Condensing
Product Form Rugged Tablet
280*187*22mm
Device unit: 1014g
Unit with standard accessories:1990g
Docking:290g,5000mAh battery:250g
Black (Front and Rear Panel: Black)
LCD 10.1 inch 16:10
1200×RGB (3)×1920
300 cd/m2
TP 10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF
Camera Front:2.0MP with charging indicator light
Rear: 8.0MP USB Camera
Speaker Embedded 8Ω/0.8W waterproof speaker x 1
Mic Sensitivity:-42db, Output resistance:2.2kΩ
Battery Lithium-ion polymer battery , swappable, dimension: 121.8*92.3*9.5mm
7.4V/5000mAh
6hrs (default 50% volumn,default200nit,play 1080P HD video)
CPU Intel®kabylake Core™ m3-7Y30
4M Cache, 2.60 GHz
GPU Intel® HD Graphics 515
RAM 4GB/8GB
SSD 128GB/256GB
E-companss sensor E-compass sensor
Gyroscope Gyroscope
G_sensor Gravity acceleration sensor
WIFI WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G Dual band WIFI
Bluetooth BT4.2 (BLE) class 1 Transmission Distance:10m
3G/4G 3G model: Bands B1,B3

4G LTE model: Bands B1,B2,B3,B4,B5,B7,B8,B28,B40

Fingerprint 070-Hello (FPC1020 sensor, capacitive press type)
FPC1020(sensor,Compression type of capacitance)
Fingerprint acquisition area:10mm x10mm üResolution:192x192pixel/508DPI
1D Barcode scanner MOTO SE655E100R
Optical Position:5mil
Scan speed: 50/s
Symbol System:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39,Code 32,Code 93 ,Code 11
2D Barcode Scanner Honeywell N3680 Hardware decoder
Optical Position:5mil
Scan speed:50/s
Symbol System:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
TF Slot Support TF x1 max:128G
SIM Slot SIM x1
Micr usb USB 2.0*1
type A usb USB3.0*1
DC Jack DC 12V 4A ∮4.0mm Power connector x1
Earphone Jack ∮3.5mm Standard Earphone Jack x1
HDMI Jack HDMI 1.4a Type C x1
Extensive Slot 12pin Pogo Pin x1
DB9 PORT *1 (RS232) TTL Electrical Level
RJ45 PORT *1(10/100/1000M Self-adaption)
Air outlet *1( Build in small board for customer customized ) Motherboard reserved standard USB2.0 interface.
TLU1HPO2H0709J-50( Tong Mao Plug)
LU1HR04H0709K( Tong Mao Plug)
OTG Cable USB OTG to MICRO USB cable, length:45mm
USB Cable USB to micro 5P L=1.2M 4 core aluminium foil shield cable
GlobComm ST16-H
 Description 1-5 NZD 6-10 NZD 1-5 AUD 6-10 AUD
 ST16 Win10 Home/Android 5.1-2+32+3G  GC170024 $1,708.50 $1,404.00 $1,623.08 $1,333.80
 ST16 Win10 Home/Android 5.1-2+32+4G  GC170025 $1,861.50 $1,557.00 $1,768.43 $1,479.15
 ST16 Win10 Pro/Android 5.1-4+64+3G  GC170026 $2,180.25 $1,797.75 $2,071.24 $1,707.86
 ST16 Win10 Pro/Android 5.1-4+64+4G  GC170027 $2,333.25 $1,950.75 $2,216.59 $1,853.21
 ST16 Win10 Pro/Android 5.1-4+64+4G+2D  GC170028 $2,588.25 $2,205.75 $2,458.84 $2,095.46
 ST16 Win10 Pro/Android 5.1-4+128+4G  GC170029 $2,537.25 $2,154.75 $2,410.39 $2,047.01
 ST16 Win10 Pro/Android 5.1-4+128+4G+2D  GC170030 $2,792.25 $2,409.75 $2,652.64 $2,289.26



 GlobComm ST16-K
 Description 1-5 NZD 6-10 NZD 1-5 AUD 6-10 AUD
 ST16K Win10 Pro-8GB+128+3G  GC170260 $2,950.00 $2,475.00 $2,655.00 $2,227.50
 ST16K Win10 Pro-8GB+128+3G+2D  GC170261 $3,205.00 $2,730.00 $2,884.50 $2,457.00
 ST16K Win10 Pro-8GB+128+4G  GC170262 $3,103.00 $2,628.00 $2,792.70 $2,365.20
 ST16k Win10 Pro-8GB+128+4G+2D  GC170263 $3,358.00 $2,883.00 $3,022.20 $2,594.70
 ST16K Win10 Pro-4GB-128+4G  GC170265 $2,575.00 $2,605.75 $2,317.50 $2,345.18



This model is CNEX rated for Intrinsically Safe Zone 2

CNEX rating is equal to IEC60079-11 / EN 60079-11

Product Support: www.globcomm.com/service-request-form

Warranty: www.globcomm.com/warranty

8 inch 10 inch 12 inch windows tablet car docking

POGO PIN Charging cradle for ST12/ST16TST86

Multi Charger Station

AR Tempered glass protector for 10.1 inch rugged tablet

ST86/ST16/ST12Rugged tablet Special Stand

All model car charger

 Accessory List for all models
 Description RRP NZD RRP AUD
 GlobComm ST86 Charging (USBx2/serialx1)  GC170043 $382.50 $344.25
 Desk docking station  GC170044 $95.00 $85.50
 Cigarette Car Charger  GC170045 $76.00 $68.40
 Car holder(C-01) (window mount)  GC170046 $81.80 $73.62
 Car holder (C-02) Fixed mount  GC170047 $184.04 $165.64
 Point Stylus Pen  GC170048 $42.90 $38.61
 Four point shoulder harness  GC170049 $70.00 $63.00
 Screen Protector x 2 suit 8″ tablets  GC170050 $35.00 $31.50
 Shoulder strap  GC170051 $42.90 $38.61
 Spare Battery (all tablets & handhelds)  GC170052 $73.00 $65.70
 Screen Protector x 2 suit 10″ tablets  GC170086 $35.00 $31.50
 Q62/T52 Desk/battery charger  GC170092 $115.00 $103.50
 GlobComm Multi-fit (ST16*ST86*ST12) vehicle dock (2xusb/serial/LAN)  GC170116 $490.00 $441.00

Specifications subject to change. Further discount available for 11+ units. All prices RRP excl. GST
